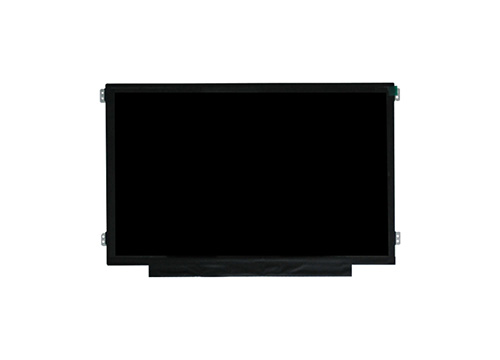

R116NWR6-R4 is the IVO original factory LCD module. It’s with HD resolution and TN viewing angle. This screen can be applicated for the cost-effective tablets and learning machine. And it’s Compatible with RoHS Standard with high quality. And the module is also with an ability to be customized based on client requirements.

Title	11.6' LCD Screen R116NWR6-R4	11.6' LCD Screen YT116B40-114-0102
	EDP TN 40pin	EDP IPS 40pin
Model	R116NWR6-R4	YT116B40-114-0102
Dimensional outline	268*158*3.0mm	260.32*174.58*3.0mm
Pixel format	1366(H)*768(V)	1920(H)*1080(V)
Interface	40pin/EDP	30pin/EDP
Brightness	220cd/m²	220cd/m²
Viewing angle	TN	IPS wide range
operating temperature	0~50℃	—20~70℃
Color	45%NTSC	45%NTSC
frequency	80mHz	47.7mHz
Display area	256.125 x 144	256.32(H)*144.18(V)
Contrast Ratio	600:1	1000:1
Color	16.7M	16.7M
Response time	25ms	30~35ms
Storage temperature	—10~60℃	—30~80℃
Brand	IVO	IVO
Packing details:
Qty in carton	40pcs
Carton size:	387*333*206

Guangdong YITIAN Optoelectronics Co., Ltd. is a high-tech enterprise specializing in intelligent LCD R&D, production and sales.  Products are widely used in tablets, laptops, GPS navigators, POS systems and industrial control, etc. LCD screens require different functions due to different application scenarios. For example, the LCD screens we use outdoors require high-brightness functions. In this way, high-brightness LCD screens were born. Its brightness and The contrast ratio is higher than that of ordinary LCD screens. Ordinary LCD screens are generally not easy to see the image under strong light. It can provide better viewing vision under strong ambient light.
